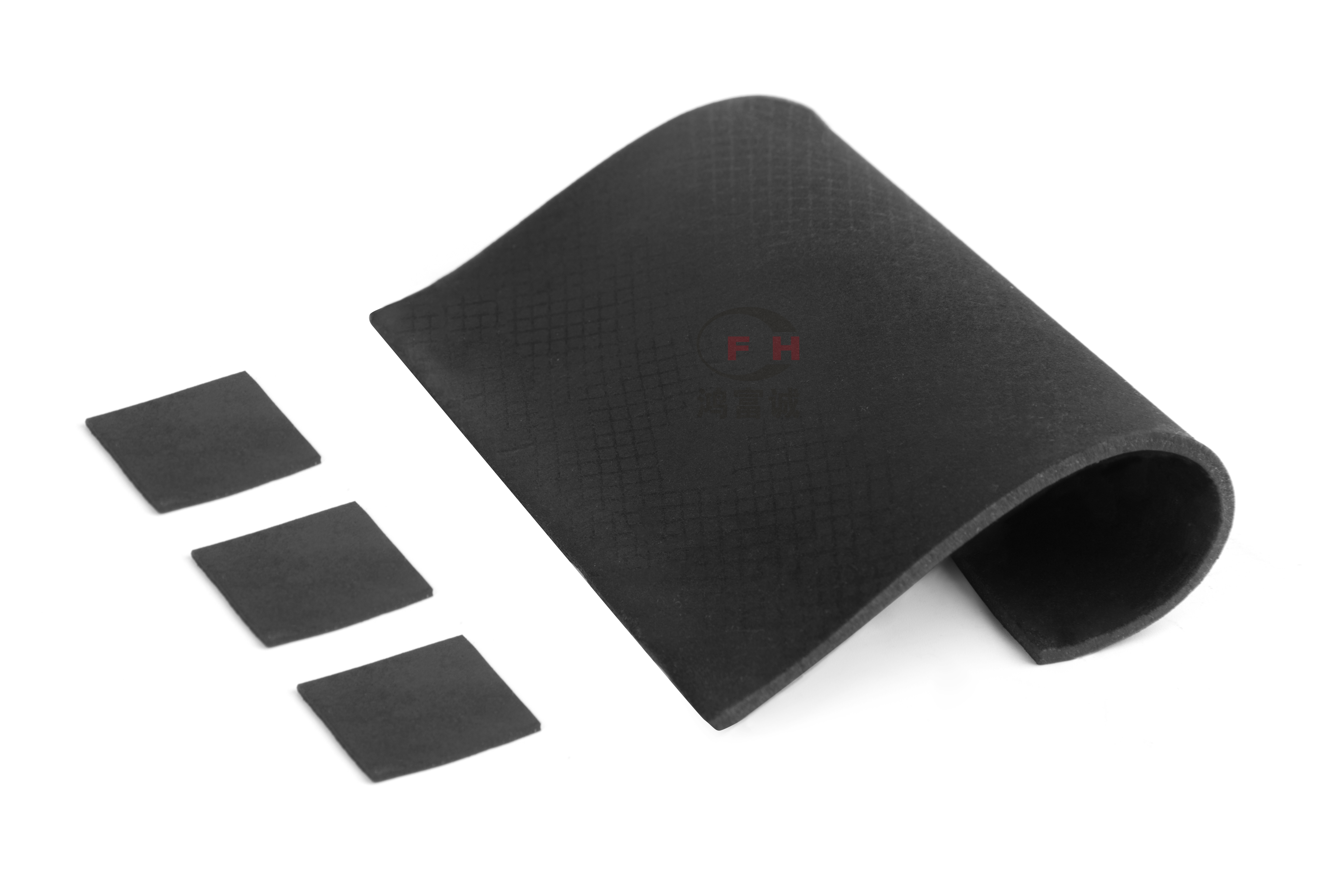

HFC HFS-18C is a new type of high-efficiency thermally conductive gasket with high thermal conductivity and high resilience rate. By using an advanced arrangement technology, the high thermal conductivity filler is uniformly and vertically distributed in the polymer matrix, which can greatly improve the efficiency of heat transfer. At the same time, it has good compression resilience, good mechanical properties and excellent thermal stability, and is widely used in electronic fields that require relatively high heat dissipation.
The surface is soft and compressible
Low thermal resistance
Lightweight, high resilience
Applications at low pressures
Good thermal stability
| Project | Technical indicators | Testing standards |
|---|---|---|
| Color | Gray-black | Visual |
| Specifications（mm） | 100*100 | ASTM D 5947 |
| Thickness（mm） | 0.5~2 | ASTM D 374 |
| Hardness（Shore 00） | 50（±10） | ASTM D 2240 |
| Density（g/cc） | 2.0（±0.2） | ASTM D 792 |
Transient compressive stress（Psi） | ≤120 (@50%) | ASTM D 575 |
Static compressive stress（Psi） | ≤50 (@50%/10min) | ASTM D 575 |
| Resilience（%） | ≥50 | ASTM D 575 |
| Oil seepage rate（%） | ＜3 | HFC |
| Operating temperature（℃） | -40~125 | IEC 60068-2-14 |
| Thermal conductivity（W/m•K） | 20 | ASTM D 5470 |
| Thermal resistance（°Cin²/W ） | ≤0.2(@40psi/0.3mm) | ASTM D 5470 |
| Pressure (Psi) | 10 20 30 40 50 | |
| Thermal resistance(℃·in2/W) | 0.126 0.139 0.152 0.160 0.166 | |
| Compression Ratio (%) | 17.25 45.03 58.13 65.53 70.83 | |
